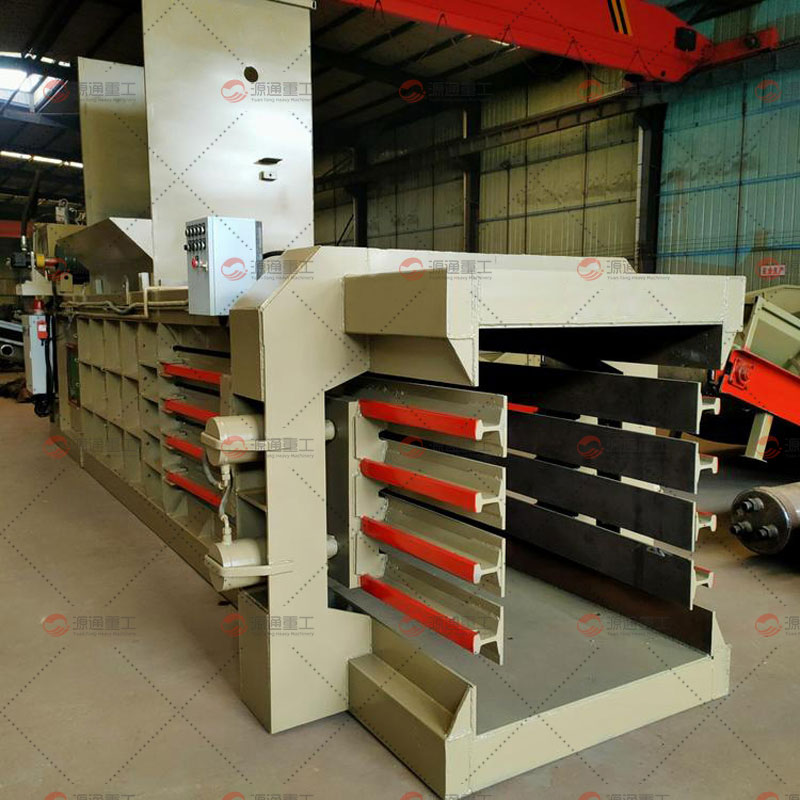

Product description
The straw baler is a large-scale machine with a fixed site. It adopts automatic operation to save manpower. The size of the bale can be adjusted according to the needs. Taihua straw baler has large baling capacity and high efficiency, which is very suitable for large enterprises, pastures and pastures.
Advantages of straw baler
The straw baler has a small area, simple operation and high working efficiency, and has reached the premise of saving time and labor and labor. And the baling effect is compact, dense, and good in air permeability. The weight of a bale is about 300-500 kg. The compressed bale size is 1 m×1.2 m×length (1-1.5) m, which greatly reduces storage Land area, increase transportation capacity and reduce the possibility of fire. The baler is an indispensable and optimal equipment for animal husbandry, papermaking, and biomass power plants. After the machine was put on the market, it has played a huge role in solving straw recycling, improving environmental pollution caused by rural straw burning, and improving the quality of straw and grass utilization. The launch of this machine is deeply loved by farmers and is a good helper for farmers to make a fortune.
Working principle of straw baler
The straw baler is composed of a body, a transmission mechanism, a feeding mechanism, a density adjustment mechanism, a grass pressing hydraulic cylinder mechanism, and a bale length control mechanism. The hydraulic push head is driven by the electric motor through the hydraulic mechanism to reciprocate, and the appropriate amount of material is transported into the grass storage cavity, and then pushed in by the grass pushing head and pressed forward. When the length of the material bundle is reached, the material bundle can be bound with a rope, and the finished product is randomly launched. Through the adjustment of the outlet, the density of the bale during baling can be changed, so that the bale is not scattered and messy. The formed bale is compact and compact, which is convenient for transportation and storage. The machine can be installed on a relatively flat field, and can also be installed on a car or tractor to move and bundle.
Technical parameter
| Model | Power (kw) | Nominal pressure | Bin size (mm) | Overall dimensions (mm) | Bale size (mm) | Bale weight (kg) |
| YTD-80 | 18.5 | 100-120 | 1400*800 | 5600*1500*1500 | 1300*800*900 | 500 |
| YTD-120 | 22 | 120-160 | 1600*900*1200 | 8500*1500*2500 | 1500*900*1100 | 1000 |
| YTD-160 | 22+18.5 | 160-180 | 1600*1100*1200 | 8500*1500*3500 | 1500*1100*1200 | 1300 |
| YTD-180 | 22+22 | 180-200 | 1800*1200*1300 | 9000*1600*4200 | 1500*1100*1300 | 1500 |
| YTD-200 | 30+37 | 200-240 | 2000*1200*1300 | 10000*1700*4500 | 1250*1100*1800 | 2000 |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
Why choose Yuantong
• Henan metal crushing equipment manufacturer
• 15 years of professional production experience, the brand is trustworthy
• With independent production and processing centers, products are exported to more than 70 countries and regions at home and abroad
• The skilled technology of front-line employees provides guarantee for products
• With dozens of unique craftsmanship, it has been praised by "Customers are trustworthy"
• Advanced environmental protection spraying equipment to ensure the beautiful appearance of the equipment
• Professional after-sales team to serve you and escort your production
• Safe and efficient logistics distribution center to ensure accurate and timely delivery of equipment
• Provide you with a full range of installation and commissioning and personnel operation training
