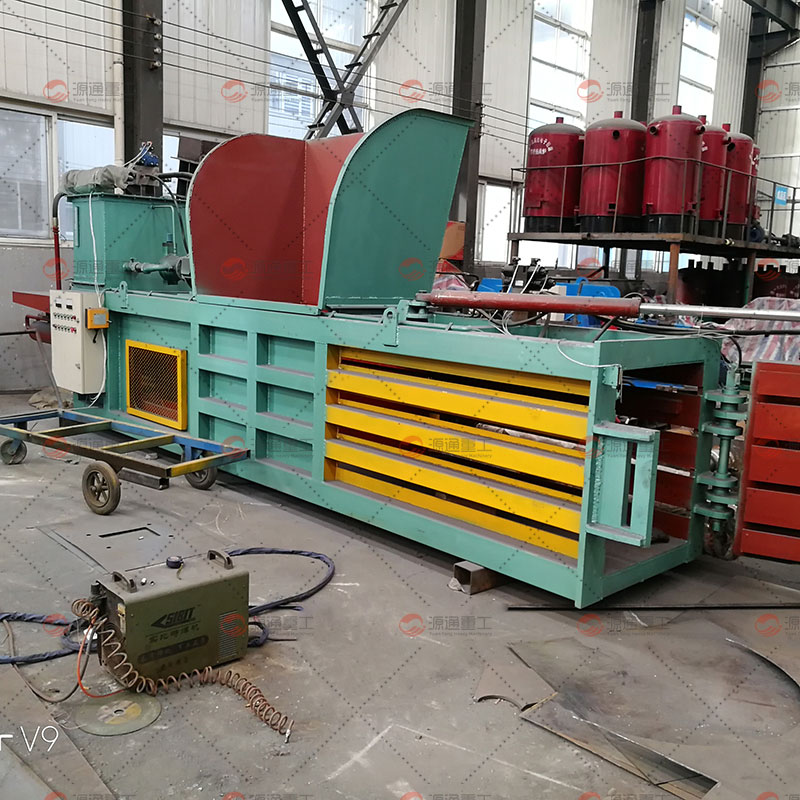

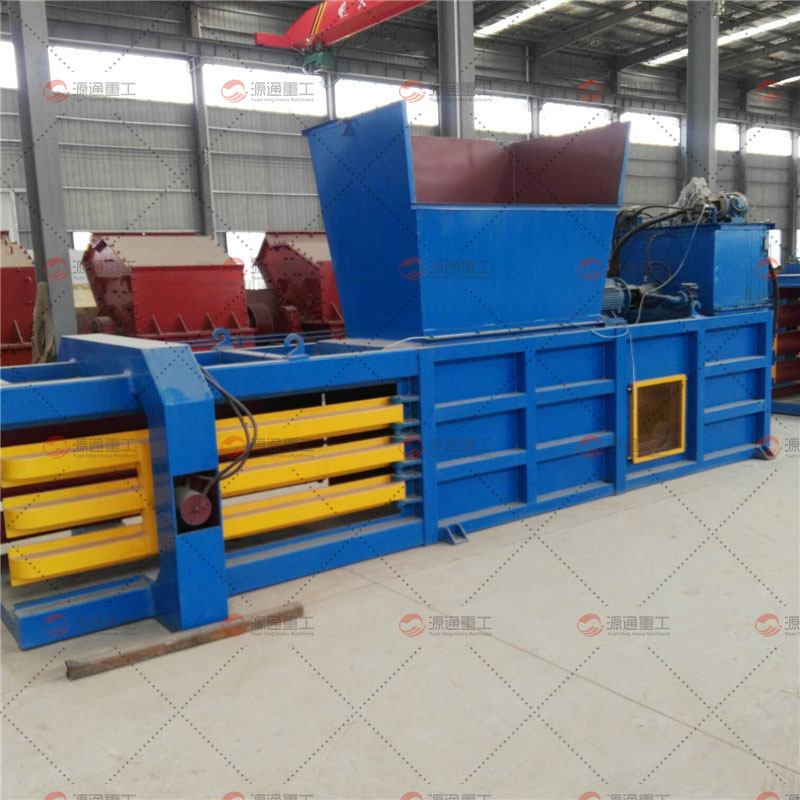

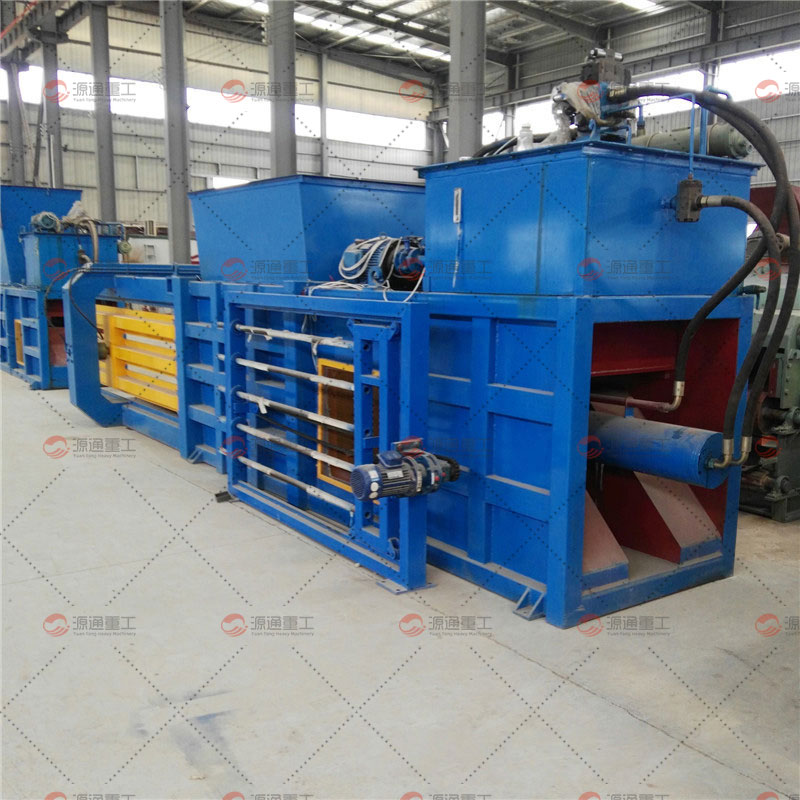

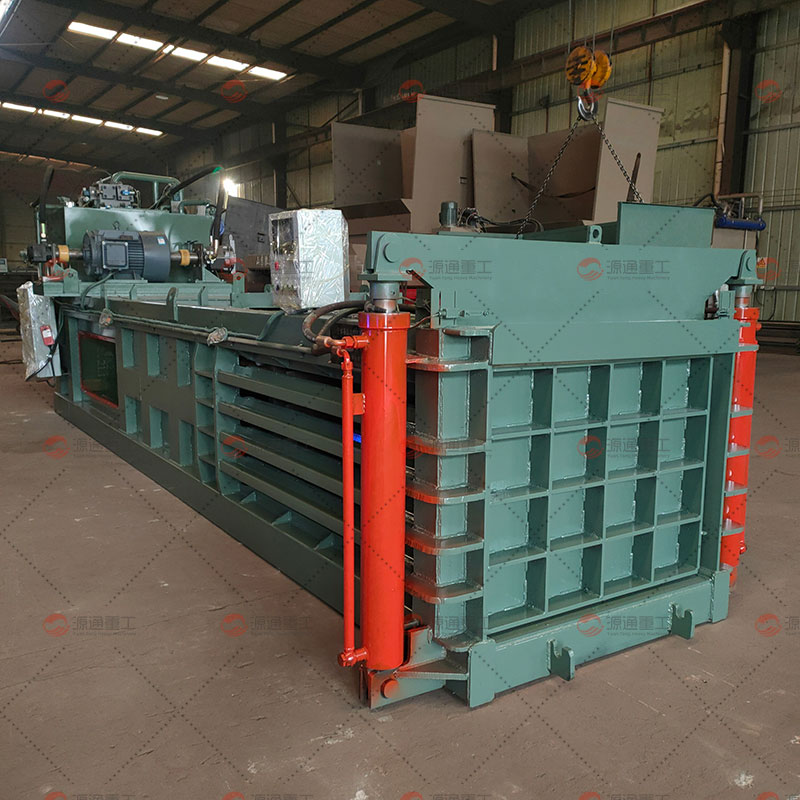

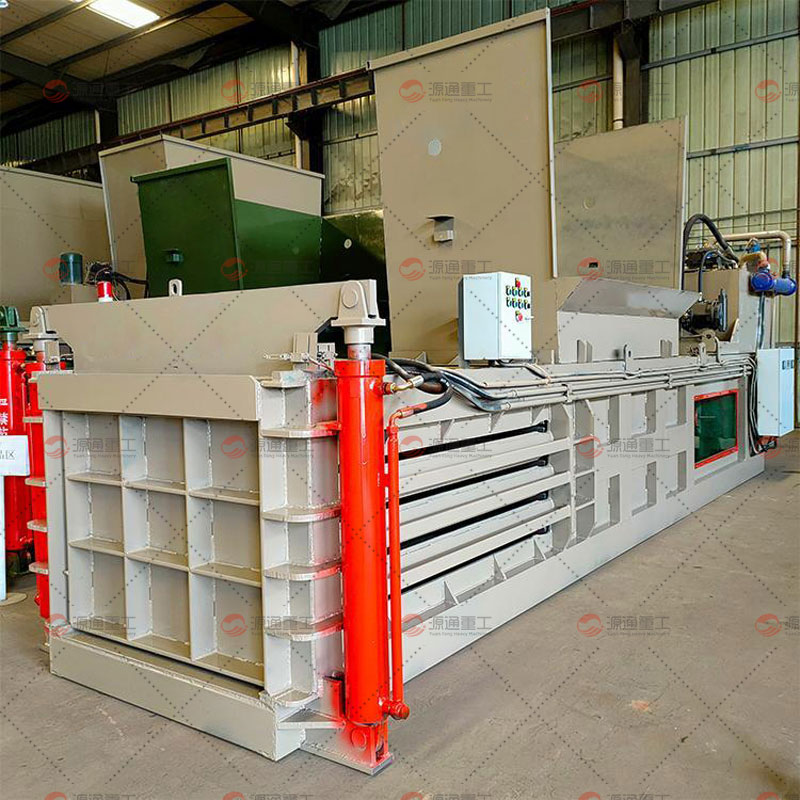

Product description
Working principle of plastic baler/plastic bottle baler:
The automatic plastic baler control system is composed of 4 sets of wire devices installed on a frame. The entire wire frame is suspended on an intermediate shaft of the compression frame. Under the action of a hydraulic motor, the compression frame is moved in a horizontal direction. The tight frame is a welded component, and the bottom is equipped with wheels, which can move horizontally along the main slide rail under the push of a hydraulic cylinder. The lifting platform is mainly formed by bolting two horizontal beams, and the lifting platform can move up and down in the vertical direction under the push of two hydraulic cylinders. The structure of the compression frame is basically similar to that of the compression frame, but there are 4 packing heads and 1 set of thread feeding device arranged on it. There are 4 sets of thread feeding devices, each set corresponds to a packing head, and each set includes packing line conveying device and packing line reverse tensioning device.
The main rail seat of the plastic hydraulic baler is mainly composed of two wear-resistant steel rails on the surface. The wheels of the compression frame are guided to run along the outer sides of the two tracks, and hydraulic cylinders that push the compression frame to operate are arranged in them. In addition, there is a complete set of hydraulic stations in addition to mechanical components. It can be seen from the above description that various movements of the plastic hydraulic baler are completed by fluid power.
Advantages of plastic bottle packing machine:
1. Hydraulic configuration: The hydraulic circuit system with fast and low noise of regenerated oil adopts the combination of imported and domestically good parts, which not only guarantees the quality but also reduces the cost, and the performance of the whole machine is stable.
2. Electrical configuration: PLC control is selected to make the circuit simple, the failure rate is low, and the inspection and troubleshooting are simple and quick.
3. Shearing knife: Use universal scissors design to improve paper cutting efficiency and extend the service life of the blade.
4. Wire tying device: general new type of wire tying device, saving iron wire, fast tying, low failure rate, easy to clean, maintain and repair.
5. Conveyor: Conveyor belt adopts new PVC material, which is anti-corrosion and aging resistance, has the advantages of slip resistance, large conveying capacity and strong load capacity.
6. The length can be set freely, and the packing value can be accurately recorded.
7. Easy installation, simple foundation construction, no foundation reinforcement treatment.
Technical parameter
| Model | Power (kw) | Nominal pressure | Bin size (mm) | Overall dimensions (mm) | Bale size (mm) | Bale weight (kg) |
| YTD-80 | 18.5 | 100-120 | 1400*800 | 5600*1500*1500 | 1300*800*900 | 500 |
| YTD-120 | 22 | 120-160 | 1600*900*1200 | 8500*1500*2500 | 1500*900*1100 | 1000 |
| YTD-160 | 22+18.5 | 160-180 | 1600*1100*1200 | 8500*1500*3500 | 1500*1100*1200 | 1300 |
| YTD-180 | 22+22 | 180-200 | 1800*1200*1300 | 9000*1600*4200 | 1500*1100*1300 | 1500 |
| YTD-200 | 30+37 | 200-240 | 2000*1200*1300 | 10000*1700*4500 | 1250*1100*1800 | 2000 |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
