Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine
Hydraulic Scrap Shearing Machine

Hydraulic Scrap Shearing Machine

Model: Q91Y Series

Power: 74-460kw

Blade length: 1400-3000mm

Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.

Download:

  • Get a quote
  • Unified Sales Hotline +8613253576129
Support hotline

+8613253576129

Product description

1

Hydraulic gantry shears are also called fully automatic hydraulic gantry shears. The gantry hydraulic shears are suitable for metal recycling processing plants, scrapped car dismantling sites, and smelting and casting industries. Yuantong mechanical gantry shearing machine with a shearing force of 400 tons to 3000 tons. The main sheared material size (12~20mm)*250mm. The cutting frequency is 8~12 times per minute. This series requires simple infrastructure. Adopting hydraulic drive, compared with mechanical transmission shears, it has the characteristics of small size, light weight, small motion inertia, low noise, stable operation, flexible operation, and large shearing section. Hydraulic and electrical integrated control, single and continuous action conversion, easy to use, stop and run at any working position, easy to realize overload protection. It has a wide range of applications. It can be used not only as processing equipment for metal recycling and processing units, but also as metal shearing processing equipment for furnace material processing in foundry workshops and mechanical construction industries.

2

Working principle:

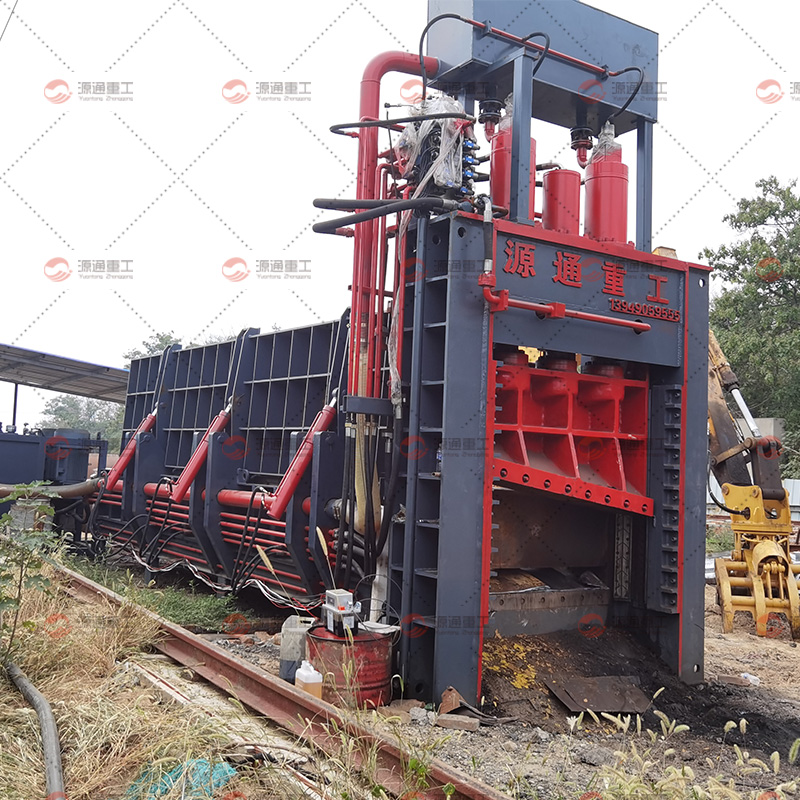

    The shearing machine produced by Henan Yuantong Heavy Industry is equipped with an automatic feeding box as standard, that is, after the material is grabbed to the feeding box, the waste is automatically sent to the cutting edge by the conveyor belt, and the feeding speed can be adjusted by the speed control motor. . Side squeeze cylinders can be equipped on both sides of the material box. If large waste materials such as scrapped cars cannot be cut through the gantry shears, the side squeeze cylinders can be used to squeeze the waste to the cutting edge. Yuantong gantry shears have a large shearing capacity, which is suitable for large-scale waste processing in large-scale waste collection stations. Commonly used specifications are 500 tons/6000 (6 meters feeding table), 800 tons/6000 (8 meters feeding table), 1000 tons/10000 (10 meters feeding table), which are used for cutting various scrap metals. They are used in rolling mills and non-ferrous metals. Ideal equipment for charge processing in metal plants and smelters.

Scope of application:

    Such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe, scrap car iron sheet, hydraulic oil drum, refrigerator iron sheet, TV case, angle steel, channel steel, small briquettes and other scrap metals.Product introduction: It adopts hydraulic drive,reliableperformance, button operation; cold shearing of light and thin materials of various shapes. The shearing machine has large shearing force and long blade, suitable for cold shearing of various cross-sectional shapes of steel (such as round steel, square steel, channel steel, I-beam, steel plate, steel pipe, etc.) and various scrap metal structural parts .

Applicable materials for gantry shears

Product Features:

    1. Hydraulic gantry shears adopt hydraulic transmission. Compared with mechanical transmission shears, they have small size, light weight, low inertia, low noise, stable movement, convenient operation, flexibility, large cutting surface, and easy adjustment of the scissors. Advantages, safe operation and use, easy to achieve overload protection.

    2. Hydraulic gantry scissors have manual, automatic, and remote control functions. The operation and control are convenient and simple. The scissors can start and stop at any position during the working process, and can arbitrarily control the cutting position according to the size of the material to be cut. size for economical work efficiency.

    3. The gantry shear is designed with a fast type. Without increasing the power of the motor and the displacement of the oil pump, the speed remains fast under shear (about 400-3000 tons), and the speed will be automatically switched when cutting larger materials. Restore the original shear force, thereby improving the work efficiency by nearly double.

    4. Hydraulic gantry shear belt quick device. Without increasing the power of the motor and the displacement of the oil pump, a fast circuit is designed to increase the shearing speed from 8 times per minute to 12 times per minute (the number of times when the scissors open their mouths), which nearly doubles the work efficiency. This function is unique among the counterparts in the country.

Technical parameter

Model Shear Force (t) Blade length (mm) Shear Frequency (times/min) Power (kw) Working pressure (Mpa) Bin size (mm)
Q91Y-315 315 ≤1200 3-5 60 28 5000*1100*550(750)
Q91Y-400 400 ≤1500 3-5 80 28 6000*1300*650(850)
Q91Y-500 50 ≤1600 3-5 80 28 6000*1500*750(950)
Q91Y-630 630 ≤1800 3-5 135 28 8000*1700*800(1100)
Q91Y-800 800 ≤2000 3 180 28 8000*1900*900(1200)
Q91Y-1000 1000 ≤3000 3 270 28 8000*2900*900(1200)
Q91Y-1250 1250 ≤3000 3 315 28 8000*2900*900(1200)
Q91Y-1500 1500 ≤3000 3 450 28 8000*2900*1000(1300)
Q91Y-2000 2000 ≤3000 3 540 28 8000*2900*1100(1400)
Parameters are for reference only. If you need detailed data, please contact us.
Contact information:  +8613253576129    hnytzgjx@163.com

8

9

6

FAQ

1. How many days do you need to produce this machine?

This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.

2. What does your factory do in terms of quality control?

We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.

3. What is the quality assurance of your machine?

The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.

4. Can you install and debug abroad? How long will it take?

Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
