Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors
Hydraulic Gantry Scissors

Hydraulic Gantry Scissors

Model: Q91Y Series

Power: 74-460kw

Blade length: 1400-3000mm

Feed height: ≤550-≤1400mm

Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.

Applicable materials: Automobiles, steel plates, rebar, channel steel, angle steel, I-beam and other large scrap steel.

Download:

  • Get a quote
  • Unified Sales Hotline +8613253576129
Support hotline

+8613253576129

Product description

龙门剪39

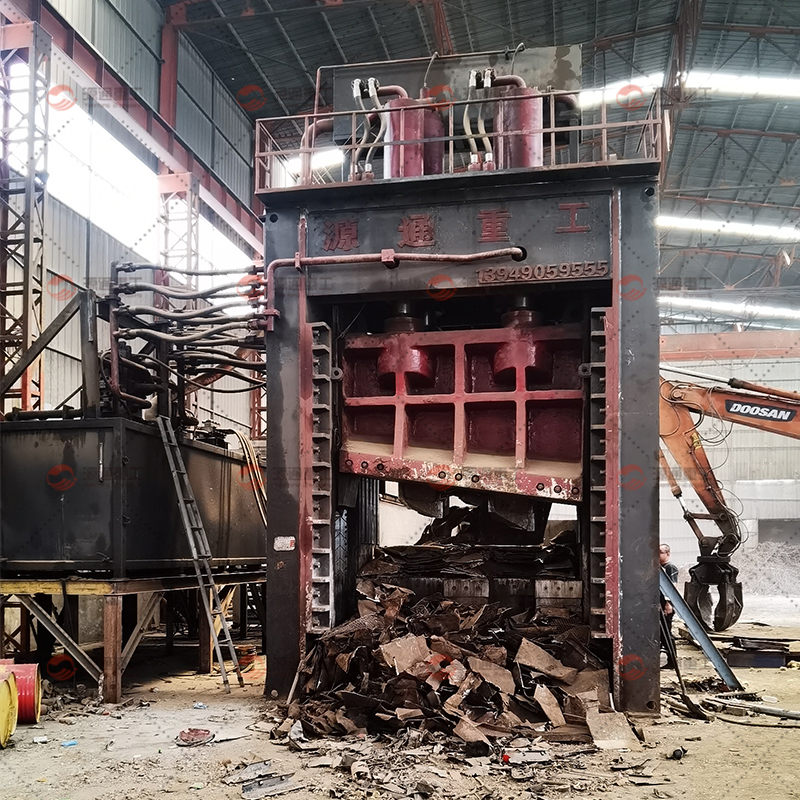

Gantry shearing machine, suitable for metal recycling processing plants, scrap car dismantling plants, renewable resource material recycling industries, for various shapes of color steel tiles, bicycle racks, motorcycle racks, scrap car iron sheets, hydraulic oil drums, refrigerator iron sheets , TV shells, angle steel, channel steel, small briquettes, domestic scrap steel, light metal structural parts, various plastic non-ferrous metal stainless steel, aluminum alloy, copper, etc., and other metal structures are cut in cold state and processed into qualified charge .


Precautions for starting the metal hydraulic gantry shearing machine

1. Start the hydraulic gantry shearing machine for a few cycles of idling to ensure that under normal conditions, try to cut sheets of different thicknesses, from thin to thick. Ensure that the user is familiar with the performance of the shears.

2. It is necessary to adjust the gap of different blades when the thickness of the plate is different during the trial cutting. If the corresponding blade gap is not adjusted, the durability of the blade will be affected.

3. Turn on the pressure gauge switch during the cutting process of the hydraulic gantry shearing machine and observe the pressure value of the oil circuit. The pressure should be less than 20MPa when cutting a 12mm plate. The user needs to comply with this regulation, and the material that exceeds the specified thickness and cannot be cut can not be cut, causing damage to the machine.

4. Sound balance during operation. If the hydraulic gantry shearing machine has noise, stop and check.

5. When the hydraulic gantry shearing machine is operating, it will shut down and rest when the fuel tank temperature is 60 degrees.

Technical parameter

Model Shear Force (t) Blade length (mm) Shear Frequency (times/min) Power (kw) Working pressure (Mpa) Bin size (mm)
Q91Y-315 315 ≤1200 3-5 60 28 5000*1100*550(750)
Q91Y-400 400 ≤1500 3-5 80 28 6000*1300*650(850)
Q91Y-500 50 ≤1600 3-5 80 28 6000*1500*750(950)
Q91Y-630 630 ≤1800 3-5 135 28 8000*1700*800(1100)
Q91Y-800 800 ≤2000 3 180 28 8000*1900*900(1200)
Q91Y-1000 1000 ≤3000 3 270 28 8000*2900*900(1200)
Q91Y-1250 1250 ≤3000 3 315 28 8000*2900*900(1200)
Q91Y-1500 1500 ≤3000 3 450 28 8000*2900*1000(1300)
Q91Y-2000 2000 ≤3000 3 540 28 8000*2900*1100(1400)
Parameters are for reference only. If you need detailed data, please contact us.
Contact information:  +8613253576129    hnytzgjx@163.com

FAQ

1. How many days do you need to produce this machine?

This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.

2. What does your factory do in terms of quality control?

We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.

3. What is the quality assurance of your machine?

The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.

4. Can you install and debug abroad? How long will it take?

Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
