Model: Q91Y Series

Power: 74-460kw

Blade length: 1400-3000mm

Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.

Download: PDF

  • Get a quote
  • Unified Sales Hotline +8613253576129
Support hotline

+8613253576129

Product description

Gantry shear is a kind of equipment suitable for cutting heavy scrap steel. Used for light and thin steel, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts, stainless steel, metal block, car body, aluminum alloy, copper material, scrap iron, steel wire, metal block, etc. . Scrap metal is sheared and processed into qualified materials in the cold state. Yuantong Heavy Industry Longmen Shearing Machine has a wide range of applications. It can not only be used as a processing equipment for metal recycling processing units, but also as a furnace material processing equipment for foundries and metal cutting processing equipment for the mechanical construction industry.


Working principle:

The shearing machine produced by Henan Yuantong Heavy Industry is equipped with an automatic feeding box as standard, that is, after the material is grabbed to the feeding box, the waste is automatically sent to the cutting edge by the conveyor belt, and the feeding speed can be adjusted by the speed control motor. . Side squeeze cylinders can be equipped on both sides of the material box. If large waste materials such as scrapped cars cannot be cut through the gantry shears, the side squeeze cylinders can be used to squeeze the waste to the cutting edge. Yuantong gantry shears have a large shearing capacity, which is suitable for large-scale waste processing in large-scale waste collection stations. Commonly used specifications are 500 tons/6000 (6 meters feeding table), 800 tons/6000 (8 meters feeding table), 1000 tons/10000 (10 meters feeding table), which are used for cutting various scrap metals. They are used in rolling mills and non-ferrous metals. Ideal equipment for charge processing in metal plants and smelters.


Advantages of Yuantong Gantry Shearing Machine Production Line:

1. Yuantong hydraulic gantry shear equipment adopts hydraulic transmission. Compared with mechanical transmission shears, it has the advantages of small size, light weight, low inertia, low noise, stable action, convenient and flexible operation, large cutting surface, and scissors mouth. Advantages such as convenient adjustment.

2. Yuantong hydraulic gantry shear equipment has manual and automatic functions, convenient and simple operation and control. The scissors mouth can start cutting and stopping at any position during the working process, and can control the cutting mouth arbitrarily according to the size of the material to be cut. Size to achieve higher work efficiency.

3. Yuantong hydraulic gantry shear equipment is designed with a fast type. Under the condition of not increasing the power of the motor and the displacement of the oil pump, the speed remains fast under shearing (about 250 tons), and it will automatically switch the speed when shearing larger materials. Restore the original shear force, thereby improving work efficiency nearly doubled.

4. The piston is sealed with a foreign BSF grid ring, which can not only keep the shear force constant under high oil temperature, but also keep the shear force constant under long-term operation or high oil temperature conditions. These advantages improve the quality of Yuantong hydraulic gantry shears and prolong the service life of the machine.

5. Yuantong hydraulic gantry shears with quick device. The valve block is designed for hydraulic movement. Without increasing the motor power and oil pump displacement, a fast circuit is designed to increase the cutting speed from 2 times per minute to 8 times per minute (referring to the number of times when the scissors are opened larger). Improve work efficiency nearly doubled. This feature is unique among the national counterparts.

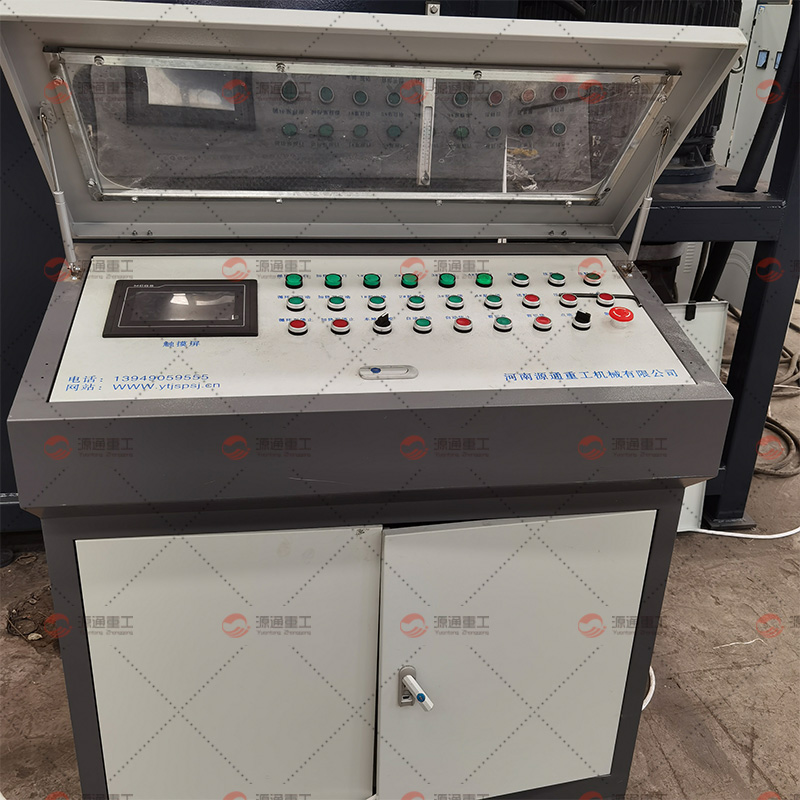

6. The hydraulic system of the whole machine only uses electromagnetic overflow valve to control the unloading start, which makes the operation more convenient (operation control box setting: start, stop, and work three operation keys, so that the operator has no trouble at work).

7. A complete set of hydraulic and electrical PLC integrated automation control, each part adopts good sensors to return data parameters to ensure accurate operation of the equipment and full automatic control, greatly reducing labor costs, and outstanding economic benefits.

Technical parameter

Model Shear Force (t) Blade length (mm) Shear Frequency (times/min) Power (kw) Working pressure (Mpa) Bin size (mm)
Q91Y-315 315 ≤1200 3-5 60 28 5000*1100*550(750)
Q91Y-400 400 ≤1500 3-5 80 28 6000*1300*650(850)
Q91Y-500 50 ≤1600 3-5 80 28 6000*1500*750(950)
Q91Y-630 630 ≤1800 3-5 135 28 8000*1700*800(1100)
Q91Y-800 800 ≤2000 3 180 28 8000*1900*900(1200)
Q91Y-1000 1000 ≤3000 3 270 28 8000*2900*900(1200)
Q91Y-1250 1250 ≤3000 3 315 28 8000*2900*900(1200)
Q91Y-1500 1500 ≤3000 3 450 28 8000*2900*1000(1300)
Q91Y-2000 2000 ≤3000 3 540 28 8000*2900*1100(1400)
Parameters are for reference only. If you need detailed data, please contact us.
Contact information:  +8613253576129    hnytzgjx@163.com

FAQ

1. How many days do you need to produce this machine?

This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.

2. What does your factory do in terms of quality control?

We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.

3. What is the quality assurance of your machine?

The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.

4. Can you install and debug abroad? How long will it take?

Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
