Product description

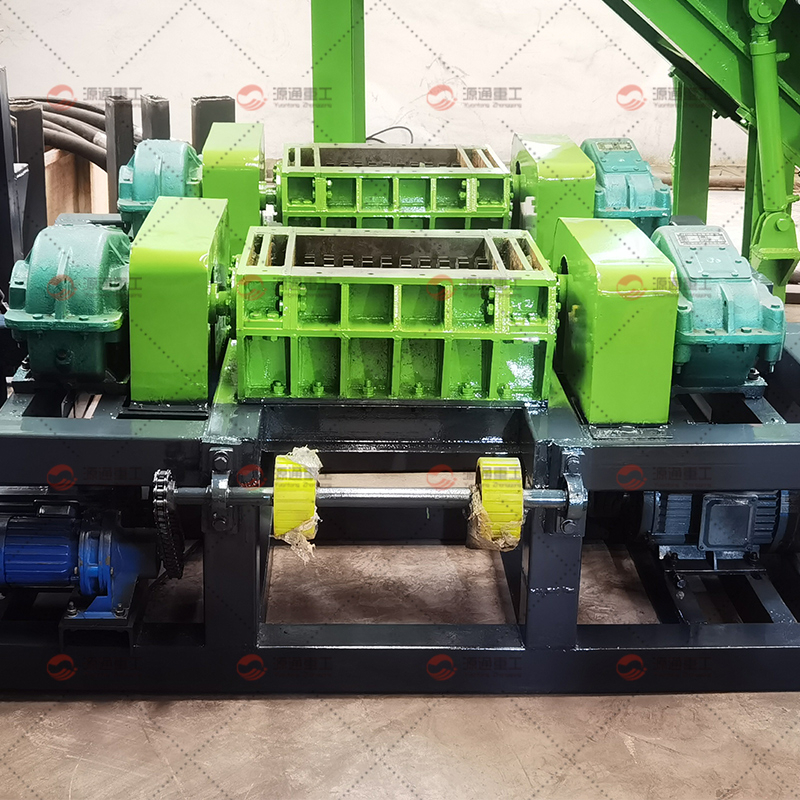

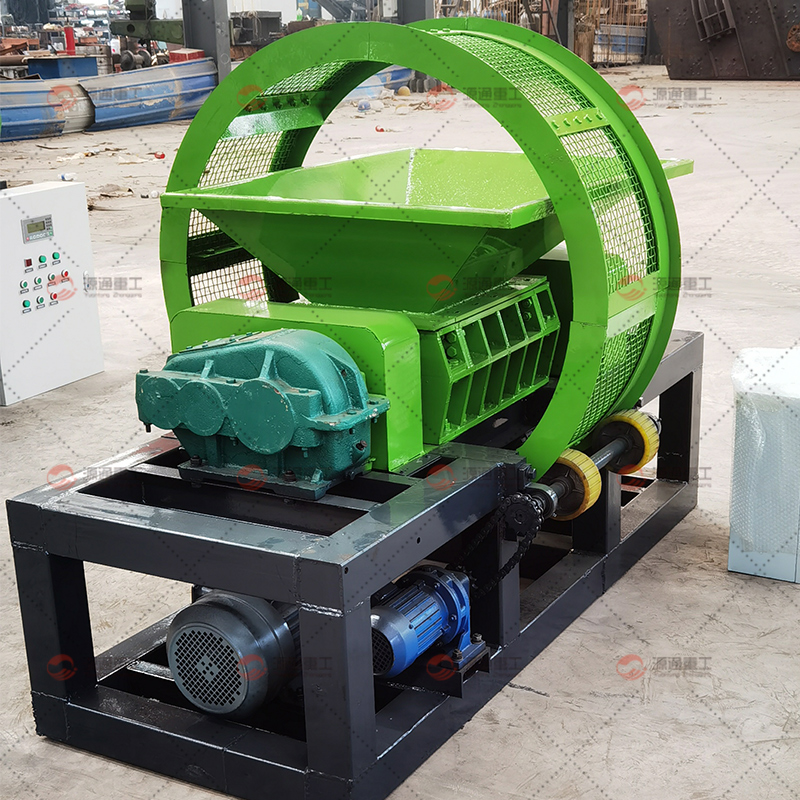

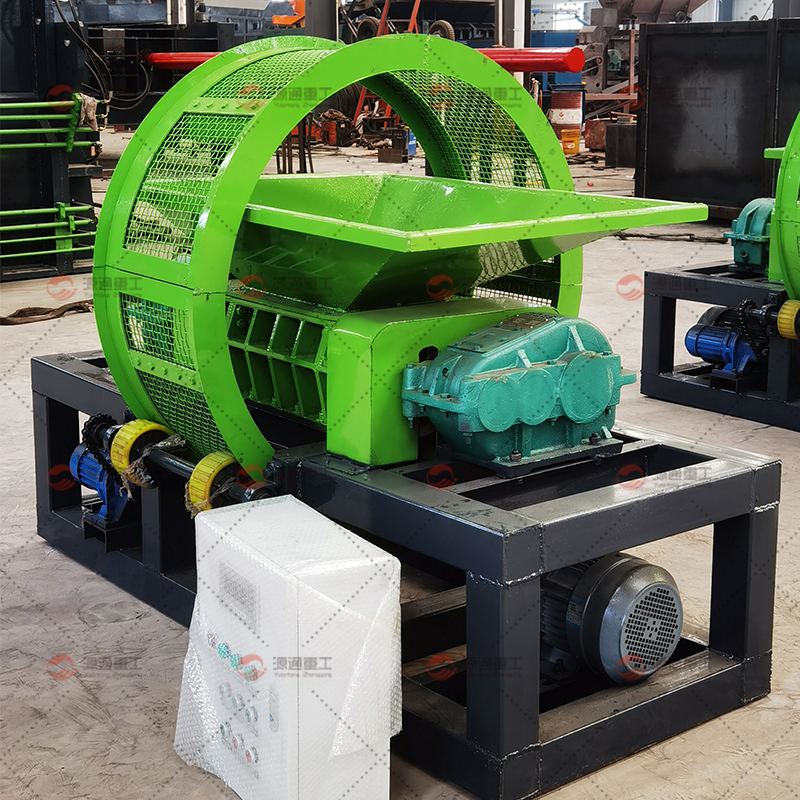

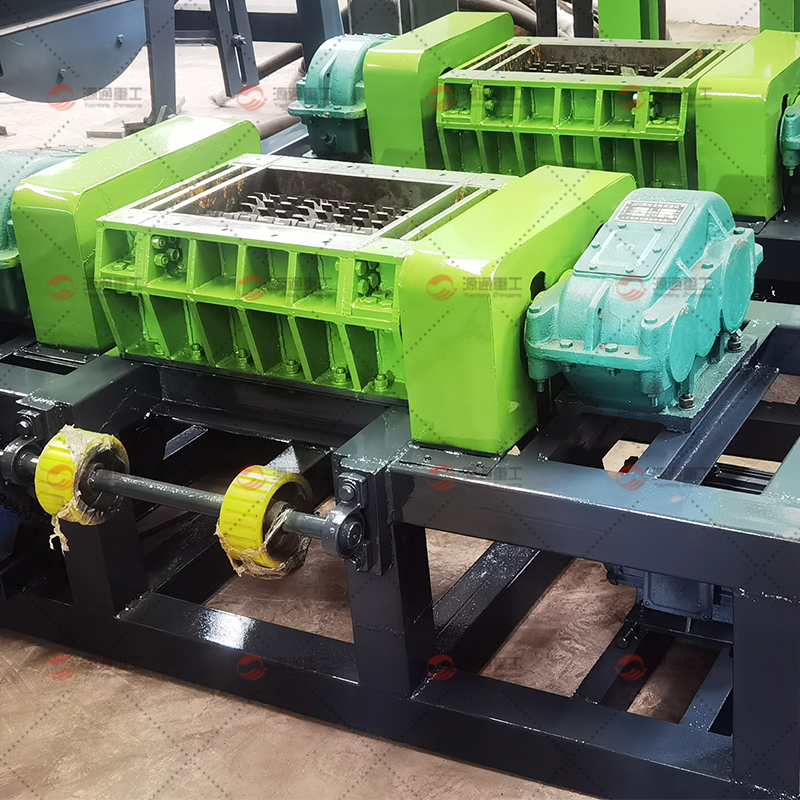

Plastic shredder is an equipment used for crushing various plastic pipes, injection molding machine head materials, waste plastic frames and other materials. This series of models includes: single-shaft plastic shredder and double-shaft plastic shredder. Customer choice.
The plastic shredder is composed of a shredding mechanism, a support, a recycling box and a cart. The size of the equipment is determined by the size of the material and the amount of material handled. The inside of the plastic shredder is designed with a filter screen device. When the plastic shredder is working normally, the filter screen plays the role of separating materials and liquids, and the liquid remaining on the bottle can be recycled.
For example, when the gasoline bottle is crushed, the residual gasoline can be separated and recovered. The plastic shredder is small in size and easy to move; it is manually operated, and the built-in garbage bag is fixed with a lock, which is stable and not easy to slip off, and the equipment is strong and durable.
Technical parameter
| Model | Spindle power (kw) | Spindle speed (r/min) | Cutter head diameter(mm) | Crusher particle size (cm) | Overall dimensions (m) | Output (t/h) |
| YTS-600 | 2*22 | 8-12 | 220/300 | 3-10 | 7*4*4.5 | 0.16-1.5 |
| YTS-800 | 2*30 | 8-12 | 300/350 | 3-10 | 6*3.5*2.4 | 2-3 |
| YTS-1000 | 2*37 | 8-12 | 380/450 | 3-10 | 5*3*2.4 | 3-6 |
| YTS-1200 | 2*45 | 8-12 | 400/500 | 3-10 | 4*2*2.2 | 4-10 |
| YTS-1600 | 2*55 | 8-12 | 450/500 | 3-10 | 3*2*2 | 6-12 |
| YTS-1800 | 2*75 | 8-12 | 500/600 | 3-10 | 3*1.8*2.2 | 8-15 |
| YTS-2000 | 2*90 | 8-12 | 600/700 | 3-10 | 2.8*1.6*2 | 10-18 |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
| Model | YT-2200 | YT-1900 | YT-1500 | YT-1200 | YT-1000 |
| Spindle power (kw) | 6-90*2 | 4-75*2 | 4-45*2 | 4-37*2 | 4-30*2 |
| Spindle speed (r/min) | 18-25 | 18-25 | 18-25 | 18-25 | 18-25 |
| Output (t/h) | 18-25 | 10-25 | 6-12 | 6-8 | 4-6 |
| Weight (t) | 28 | 15 | 12 | 6 | 5 |
| Diameter of cutter head (mm) | Φ600-1200 | Φ600 | Φ550 | Φ400 | Φ400 |
| Broken size (cm) | 5-20 | 5-20 | 5-200 | 3-10 | 3-10 |
| Length, width and height (m) | 7x3x3.2 | 6*2.5*2.4 | 4*2.47*2.4 | 3.2*2*1.9 | 3*2*1.9 |
| Workshop length x width (m) | 2.2x1.85 | 1.9x1.2 | 1.5x1.0 | 1.2x1.0 | 1.0x0.7 |
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
Why choose Yuantong
• Henan metal crushing equipment manufacturer
• 15 years of professional production experience, the brand is trustworthy
• With independent production and processing centers, products are exported to more than 70 countries and regions at home and abroad
• The skilled technology of front-line employees provides guarantee for products
• With dozens of unique craftsmanship, it has been praised by "Customers are trustworthy"
• Advanced environmental protection spraying equipment to ensure the beautiful appearance of the equipment
• Professional after-sales team to serve you and escort your production
• Safe and efficient logistics distribution center to ensure accurate and timely delivery of equipment
• Provide you with a full range of installation and commissioning and personnel operation training
