Product description

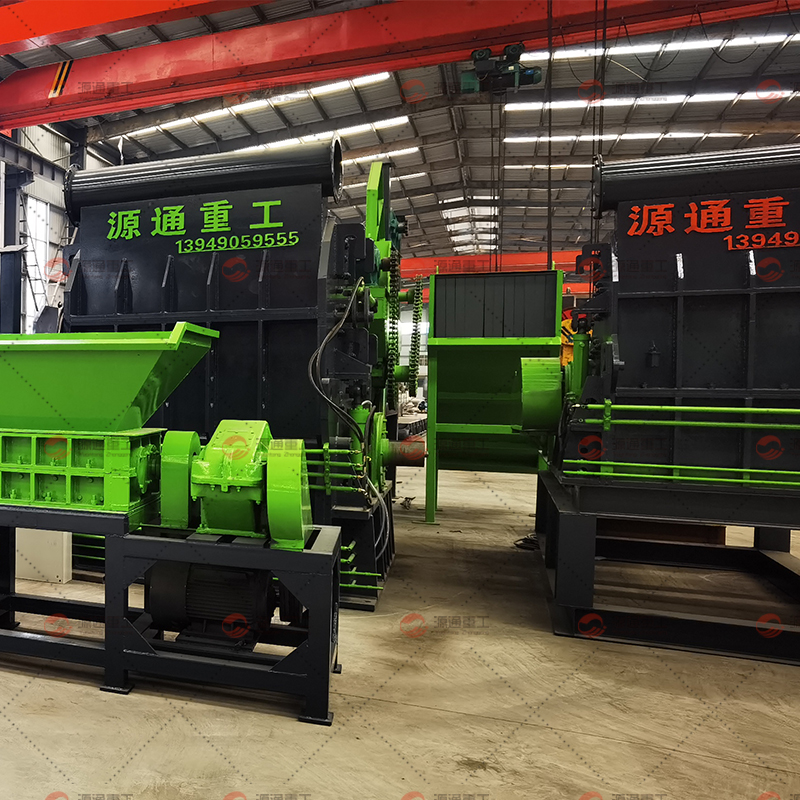

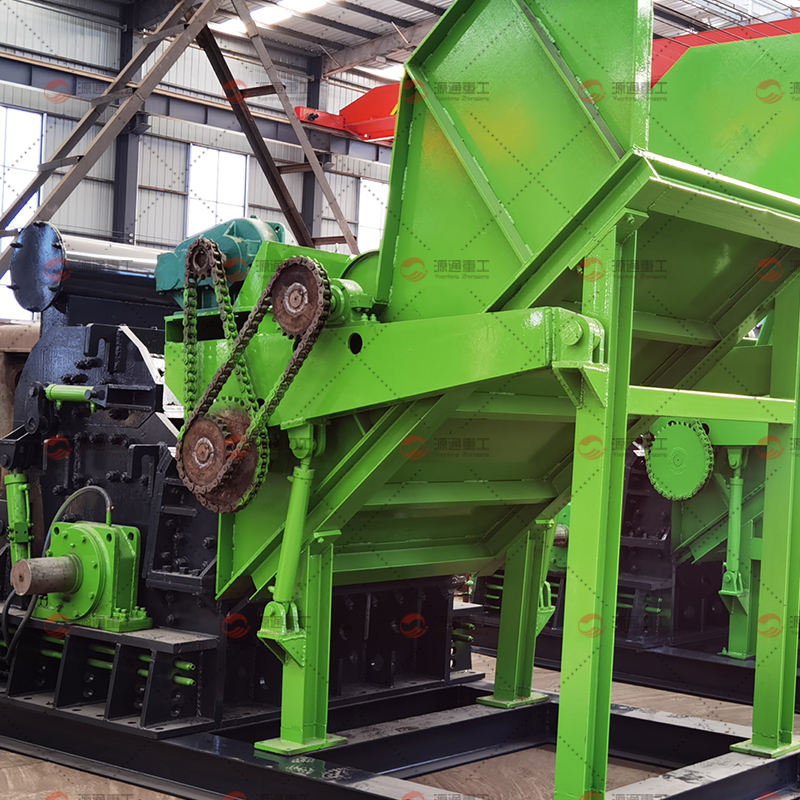

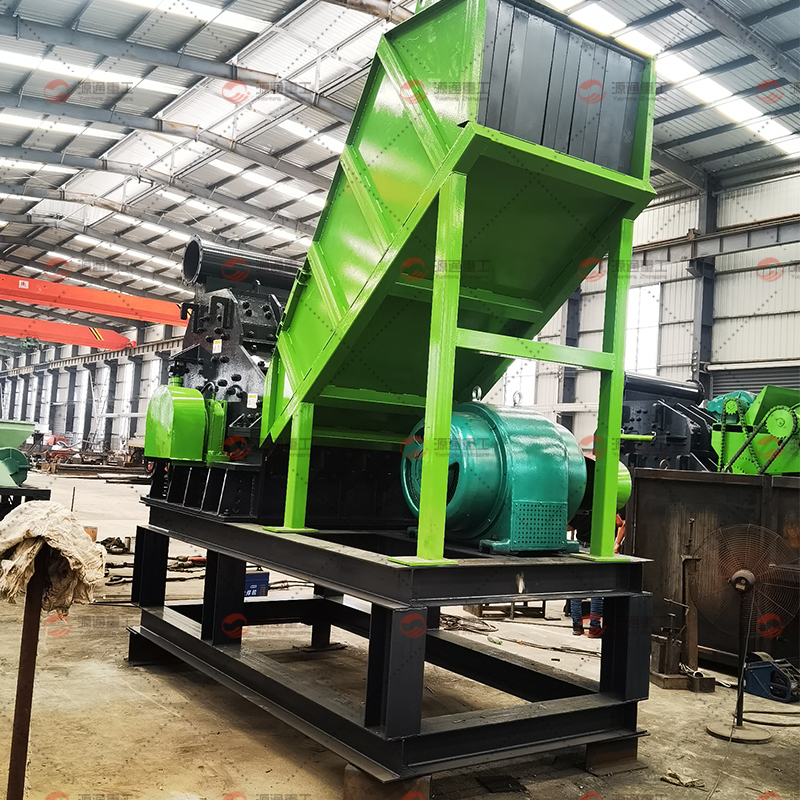

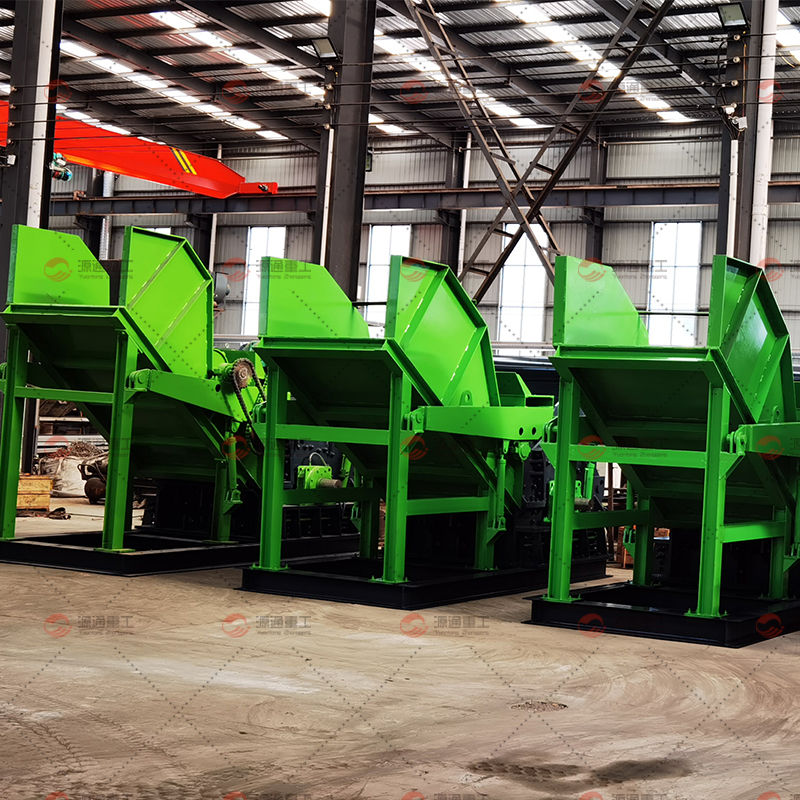

Scrap steel crusher is a kind of crushing equipment used to process scrap steel, mainly used for crushing scrapped cars, scrapped household appliances and light and thin scrap steel. The crushed material processed by the scrap steel crusher has high density, high purity, and basically no impurities. When steel mills and other manufacturing enterprises use the crushed material to remelt it into new products, the unit energy consumption is low, the output is high, and the comprehensive economy is obvious. Scrap steel shredder is recognized as the ideal equipment for processing scrap steel.
Process flow:
The whole scrap steel crusher production line is composed of feed conveyor - main engine - vibrating feeder - discharge conveyor - magnetic separator - iron conveyor - impurity conveyor - dust collector - PLC control cabinet. The crushed objects from the scrap steel crusher are separated from ferrous metals, non-ferrous metals and non-metallics by vibrating feeder, belt conveyor, and magnetic separation system, and sent out to the pile by their respective conveyors. Non-ferrous metals and non-metallic objects will be searched again by magnetic separation equipment on the conveyor to sort out free iron metal objects, thereby improving the recovery rate of ferrous metal objects. At the same time, sorting non-ferrous metals through eddy current separators can improve recovery benefit. The whole crushing line is controlled by PLC, which can realize computer control and manual operation.
The main equipment of scrap steel crushing line includes: chain plate feeding conveyor, scrap steel crusher host, hydraulic feeding device, vibrating feeder, belt-type discharging conveyor, suction magnetic separator, discharging conveyor, Ironware, rotary conveyors, etc.
The supporting system includes: electrical control system, dust removal system, sprinkler system, hydraulic system, TV monitoring system, and the wires, hydraulic pressure and sprinkler pipelines required between the above-mentioned equipment and systems.
Features:
1. Super high crushing efficiency
It adopts hydraulic feeding, swing hammer and ring hammer combined crushing hammer head, which improves the efficiency by 5%-15% compared with other crusher equipment.
2. Perfect finished particles
The special roller rubbing process is adopted to significantly remove paint and other dirt, form high-density pellet-like materials, and improve the grade of crushed materials.
3. Stable operation ability
Set up a safety door, after the unbreakable material enters the crushing cavity, the operator can open the safety door to discharge it out of the machine body to avoid damage to the crusher.
4. Intelligent control system
PLC control system and hydraulic power system, intelligent production saves time and effort, and realizes stable, automatic and safe operation of the whole production line.
Technical parameter
| Model | Power (kw) | Inlet width (mm) | Output size (mm) | Output (t/h) | Matching Transformer | |
| YTP-37 | 37 | 600 | 20-50 | ≈0.5 | 100KVA | |
| YTP-45 | 45 | 800 | 20-60 | ≈1 | 100KVA | |
| YTP-55 | 55 | 1000 | 20-60 | ≈1.2-1.5 | 100KVA | |
| YTP-75 | 75 | 1000 | 20-60 | ≈1.5-2 | 125KVA | |
| YTP-110 | 110 | 1300 | 30-60 | ≈2-3 | 250KVA | |
| YTP-132 | 132 | 1300 | 30-80 | ≈3-4 | 250KVA | |
| YTP-200 | 200 | 1600 | 30-80 | ≈3-5 | 250KVA | |
| YTP-280 | 280 | 1600 | 40-80 | ≈4-6 | 315KVA | |
| YTP-315 | 315 | 1800 | 40-80 | ≈6-8 | 400KVA | |
| YTP-450 | 450 | 2000 | 50-100 | ≈8-10 | 630KVA | |
| YTP-630 | 630 | 2000 | 50-120 | ≈10-13 | 800KVA | |
| YTP-710 | 710 | 2000 | 50-120 | ≈12-15 | 10KV High voltage | |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
