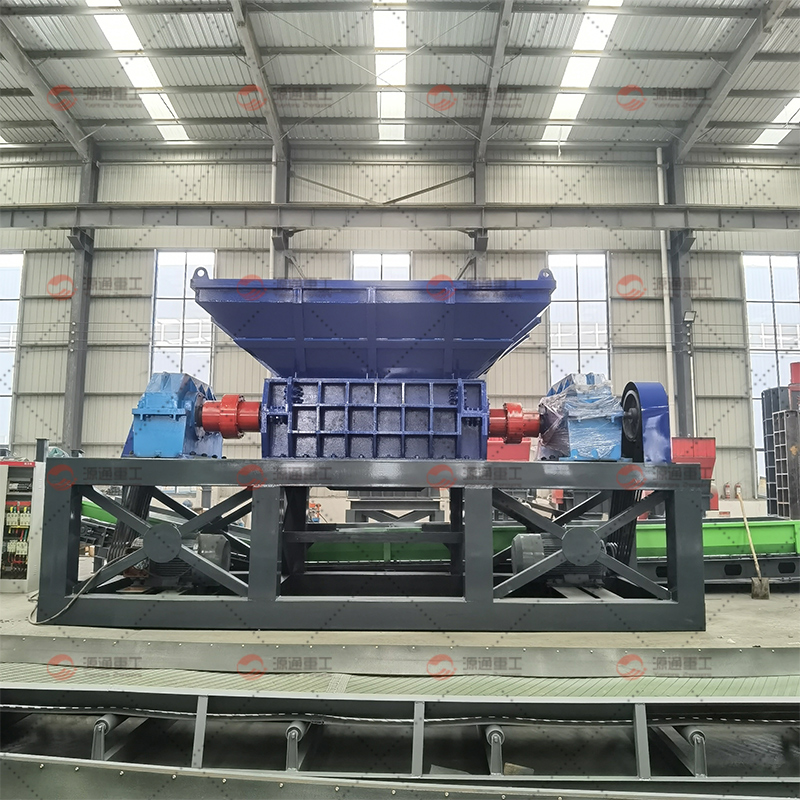

Product description

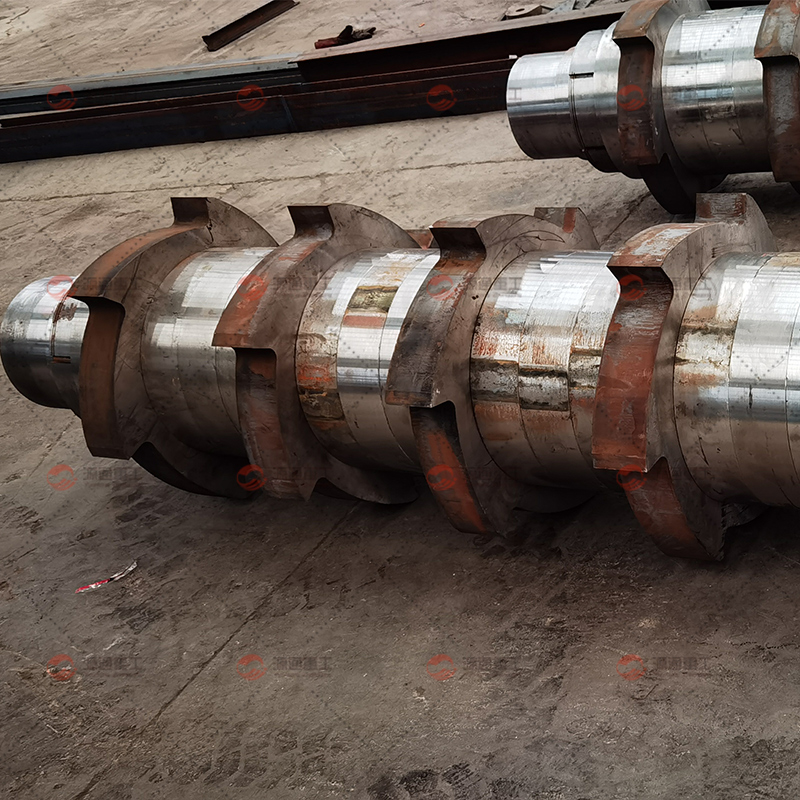

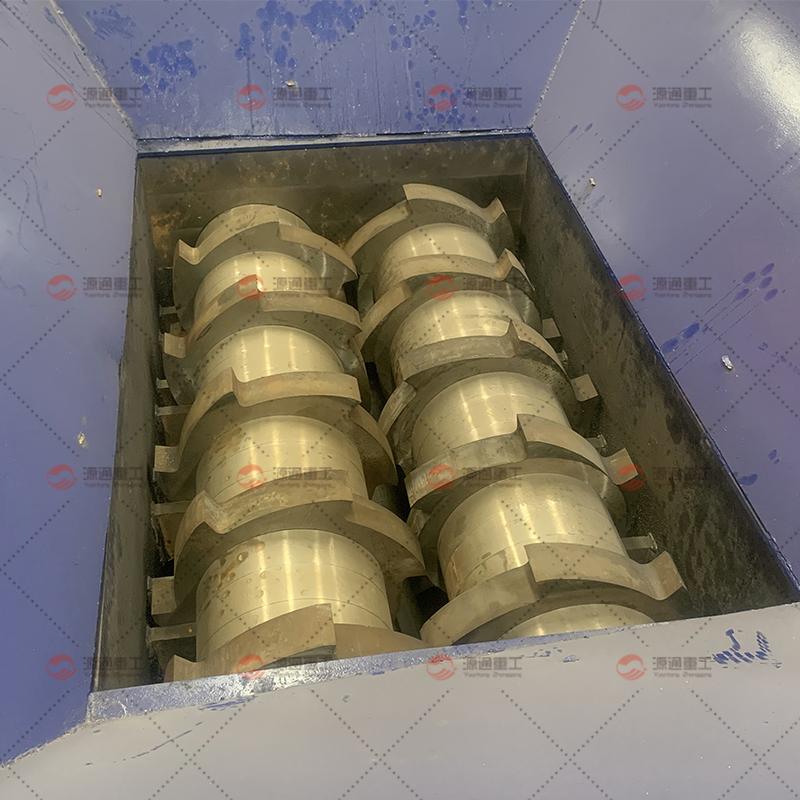

The cutters of this machine are made of special alloy steel (high-speed steel) through a special processing technology, and have the characteristics of good wear resistance, high strength, and repairability. When working, the two shredding knives implement a differential relative operation mode. A crushing tooth cavity is formed, and the incoming materials are torn and squeezed to the required particle size.
The tooth knife has a unique design in terms of thickness, shape, arrangement order, etc., with strong shearing force, which can improve the shredding efficiency;
The driving part is driven by a heavy-duty planetary gear reducer, which has the characteristics of low speed, large torque, and low noise;
The bearing seat adopts the split type, easy to disassemble and replace the gear cutter, and the parts are interchangeable;
The outer frame structure of the extra-thick plate welding process, the powerful rotating shaft of the large-angle hexagonal column, and the large-diameter solid feeding hopper, so you can safely put in large-scale raw materials;
The electrical part adopts PLC program and touch screen control, with video monitoring system, automatic detection of overload protection and other functions.
In terms of equipment advantages, the double-shaft shredder can be used to process various metal, wood, plastic and other industrial wastes and urban garbage that cannot be processed by various shredders.
Features:
1. Low speed, high torque, low noise and wide application.
2. The blade is made of alloy tool steel with high hardness and strong wear resistance.
3. With independent design ability, independent design can be carried out according to the actual situation of customers, and overall solutions can be provided.
Technical parameter
| Model | Spindle power (kw) | Spindle speed (r/min) | Cutter head diameter(mm) | Crusher particle size (cm) | Overall dimensions (m) | Output (t/h) |
| YTS-600 | 2*22 | 8-12 | 220/300 | 3-10 | 7*4*4.5 | 0.16-1.5 |
| YTS-800 | 2*30 | 8-12 | 300/350 | 3-10 | 6*3.5*2.4 | 2-3 |
| YTS-1000 | 2*37 | 8-12 | 380/450 | 3-10 | 5*3*2.4 | 3-6 |
| YTS-1200 | 2*45 | 8-12 | 400/500 | 3-10 | 4*2*2.2 | 4-10 |
| YTS-1600 | 2*55 | 8-12 | 450/500 | 3-10 | 3*2*2 | 6-12 |
| YTS-1800 | 2*75 | 8-12 | 500/600 | 3-10 | 3*1.8*2.2 | 8-15 |
| YTS-2000 | 2*90 | 8-12 | 600/700 | 3-10 | 2.8*1.6*2 | 10-18 |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
