Model: Q91Y Series

Power: 74-460kw

Blade length: 1400-3000mm

Bin size: The width of the material box is generally the width of the blade, and the length is 6m or 8m.

Download:

  • Get a quote
  • Unified Sales Hotline +8613253576129
Support hotline

+8613253576129

Product description

1. The main machine is welded by steel plate, without deformation and tearing. The equipment does not need to be fixed with a cement foundation when working, and the work site can be changed at any time. It makes up for the current gap in the domestic forging machinery industry.

2. For shearing work, the upper blade and the power main cylinder have no kinematic joints, no kinematic connection, and no damage.

3. Adopting strength quenching guide rail and automatic lubrication system. It is more convenient for maintenance and repair.

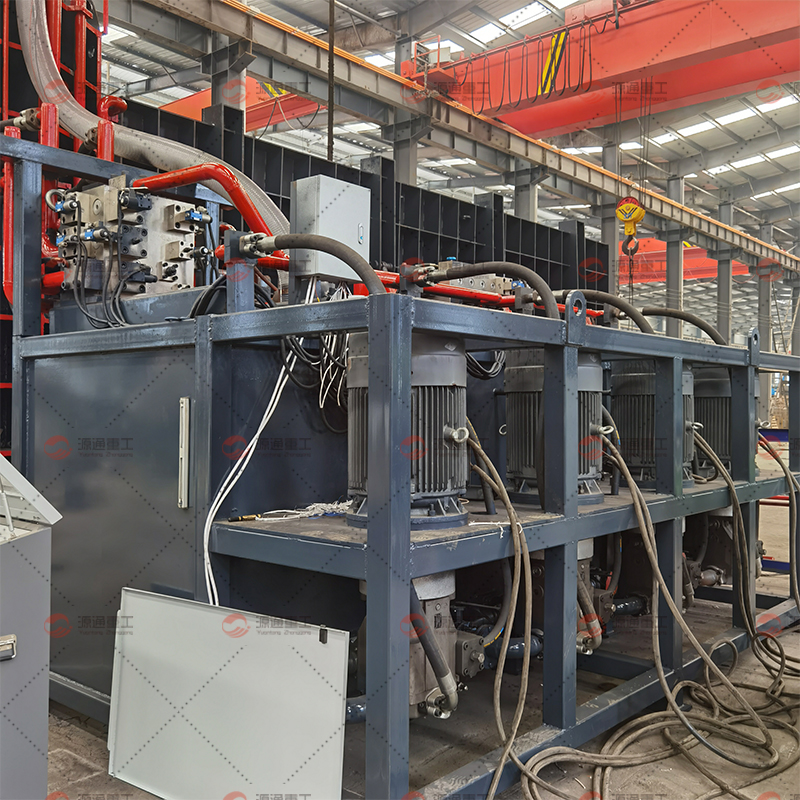

4. The hydraulic system of the whole machine only adopts an electromagnetic overflow valve to control the unloading start, which makes the operation more convenient and the maintenance free of trouble.

5. The dual output nitrogen return device enables the upper blade to complete the shearing and quick reset.

6. The rectangular blade with four cutting edges can be re-grinded and used again after being turned over and used four times, reducing production costs.


Technical parameter

Model Shear Force (t) Blade length (mm) Shear Frequency (times/min) Power (kw) Working pressure (Mpa) Bin size (mm)
Q91Y-315 315 ≤1200 3-5 60 28 5000*1100*550(750)
Q91Y-400 400 ≤1500 3-5 80 28 6000*1300*650(850)
Q91Y-500 50 ≤1600 3-5 80 28 6000*1500*750(950)
Q91Y-630 630 ≤1800 3-5 135 28 8000*1700*800(1100)
Q91Y-800 800 ≤2000 3 180 28 8000*1900*900(1200)
Q91Y-1000 1000 ≤3000 3 270 28 8000*2900*900(1200)
Q91Y-1250 1250 ≤3000 3 315 28 8000*2900*900(1200)
Q91Y-1500 1500 ≤3000 3 450 28 8000*2900*1000(1300)
Q91Y-2000 2000 ≤3000 3 540 28 8000*2900*1100(1400)
Parameters are for reference only. If you need detailed data, please contact us.
Contact information:  +8613253576129    hnytzgjx@163.com

FAQ

1. How many days do you need to produce this machine?

This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.

2. What does your factory do in terms of quality control?

We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.

3. What is the quality assurance of your machine?

The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.

4. Can you install and debug abroad? How long will it take?

Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
