Vertical baler
Energy saving

Vertical baler





  • Get a quote
  • Unified Sales Hotline +86 13949059555

Product description

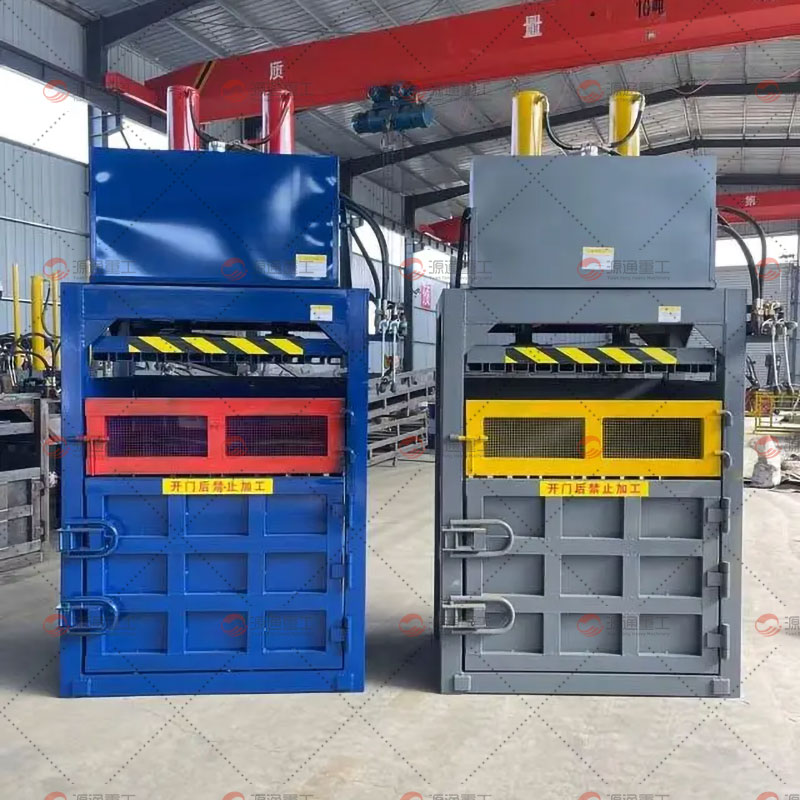

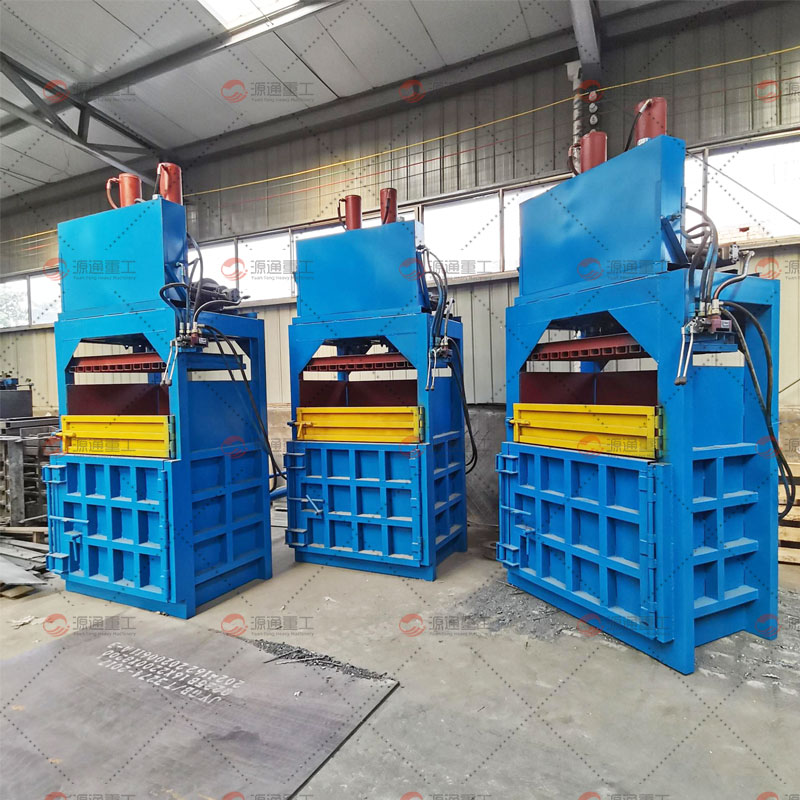

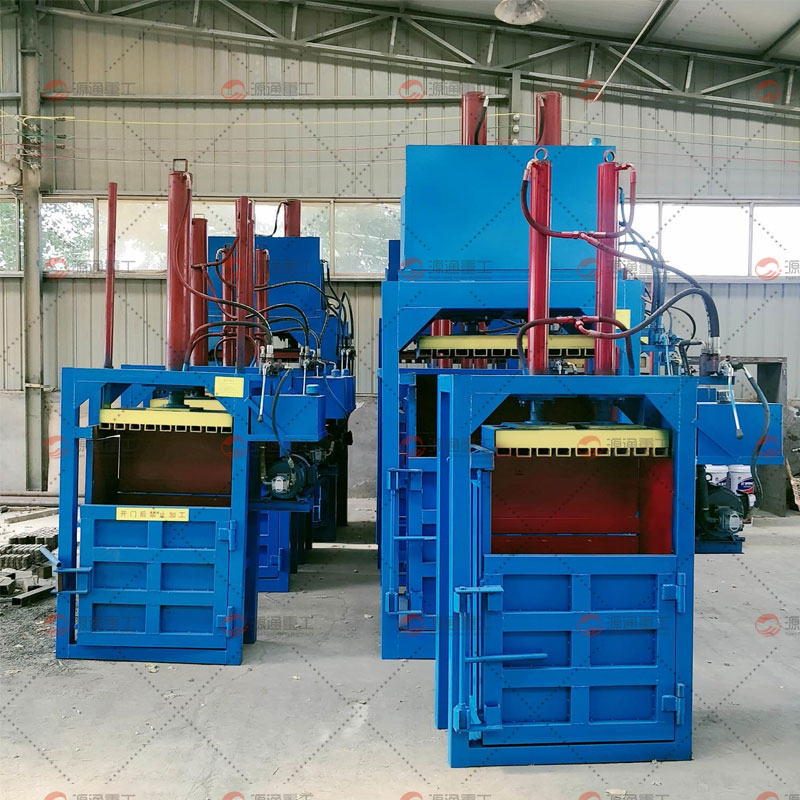

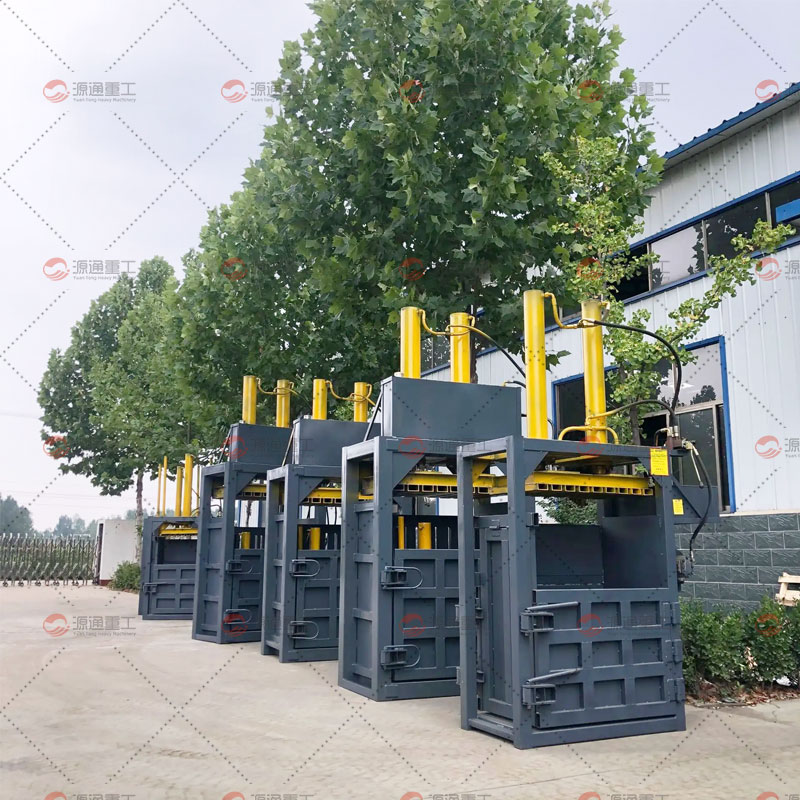

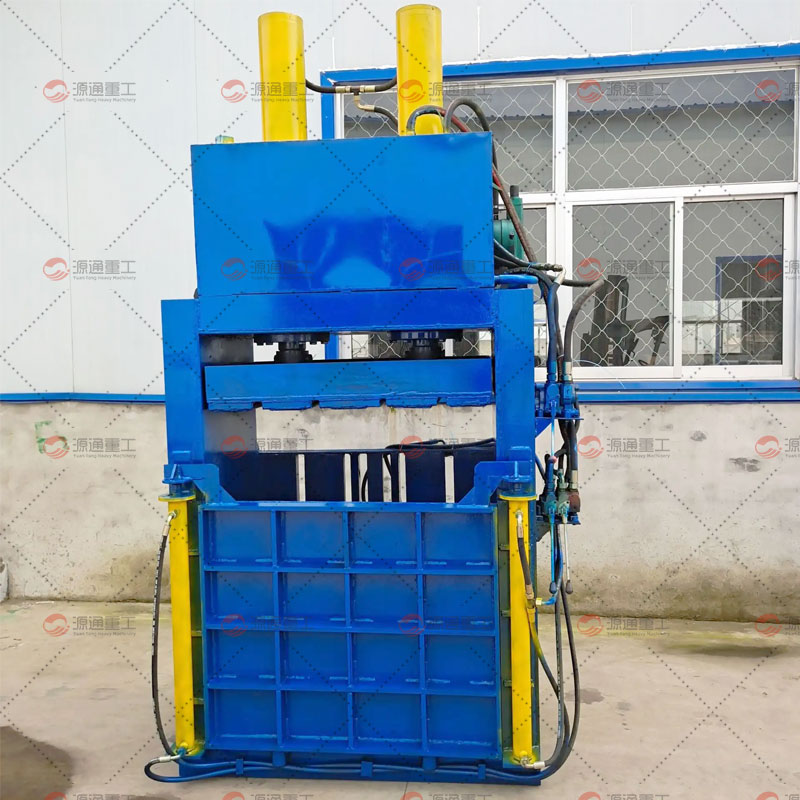

Vertical hydraulic baler is mainly used to recycle packaging materials and waste products such as compressed cardboard, waste film, waste paper, foam plastic, beverage cans and industrial scraps.

This packer reduces waste storage space, saves up to 80% of stacking space, reduces transportation costs, and is conducive to environmental protection and waste recycling.


1. Hydraulic compaction, manual loading, manual button operation

2. Maintain the physical properties of the material

3. The waste compaction ratio can reach 5:1

4. Two tie lanes for easy operation

5. Anti-rebound barb to maintain the compression effect

6. The pressure plate returns automatically

Basic structure: It is mainly composed of hydraulic cylinder, motor and fuel tank, pressure plate, box body and base, upper door, lower door, door latch, strap bracket, iron support, etc.

Technical parameter

Packer modelDZ-120 modelDZ-160 modelDZ-180 modelDZ-200 model
Nominal pressure1200KN1600KN1800KN2000KN
Number of bundles4 threads5 threads5 threads5 threads
Package size1100mm×900mm×1300mm adjustable1100mm×1150mm×1500mm adjustable1100mmx1250mmx1500mm adjustable1100mm×H1350mm×1600mm adjustable
System pressure28mpa28mpa28mpa28mpa
Voltage frequency380V/50HZ380V/50HZ380V/50HZ380V/50HZ
Operation methodautomatic / manualautomatic / manualautomatic / manualautomatic / manual
Yield6~9 packs/H8~12 packs/H10~15 packs/H12~15 packs/H
Bag weight800kg1000kg1200kg1400kg

Why choose Yuantong

Ten years of ingenuity metal crushing equipment

• Henan metal crushing equipment manufacturer

• 10 years of professional production experience, the brand is trustworthy

• With independent production and processing centers, products are exported to more than 70 countries and regions at home and abroad

Strictly control product process quality

• Hundreds of front-line workers provide guarantee for product development and technological innovation

• With dozens of unique craftsmanship, it has been praised by "Customers are trustworthy"

• Advanced environmental protection spraying equipment to ensure the beautiful appearance of the equipment

Professional service team, meticulous service

• Professional service team to serve you and escort your production

• Safe and efficient logistics distribution center to ensure accurate and timely delivery of equipment

• Provide customers with free installation and commissioning and personnel operation training services
