Product description

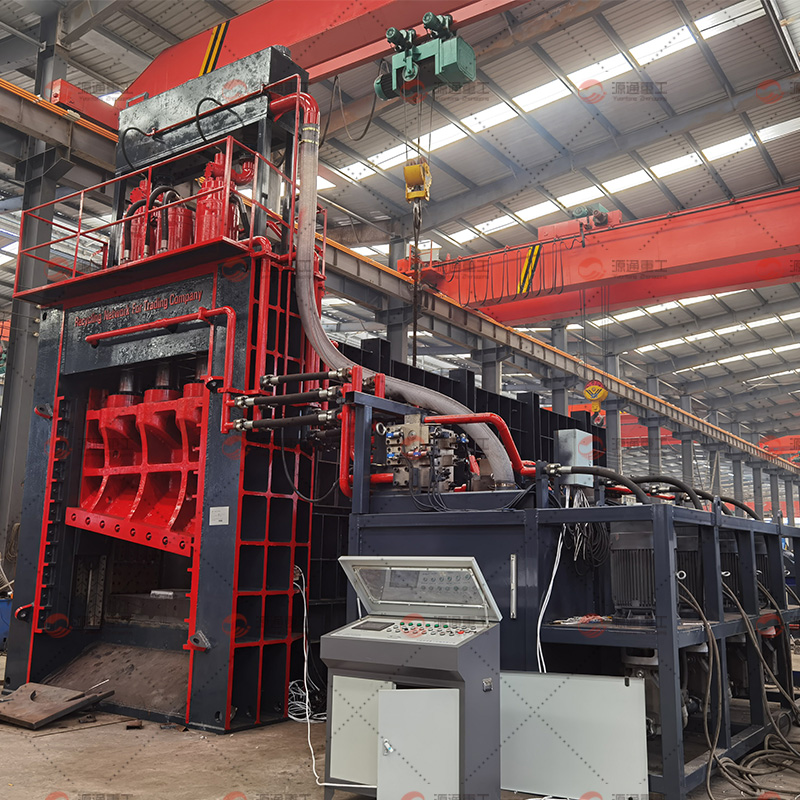

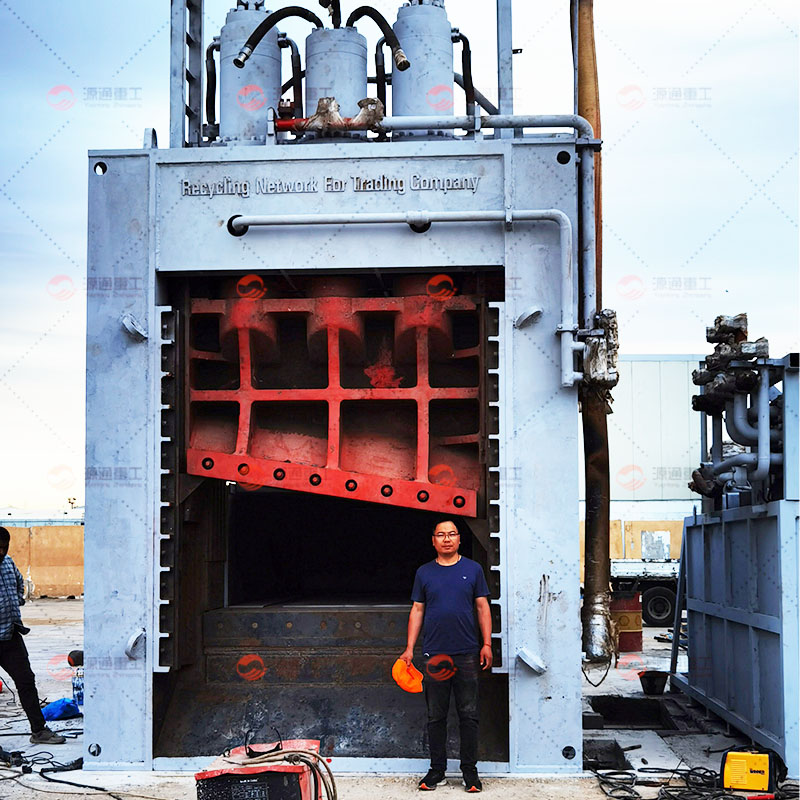

Hydraulic gantry shears are also called fully automatic hydraulic gantry shears. The gantry hydraulic shears are suitable for metal recycling processing plants, scrapped car dismantling sites, and smelting and casting industries. Yuantong mechanical gantry shearing machine with a shearing force of 400 tons to 3000 tons. The main sheared material size (12~20mm)*250mm. The cutting frequency is 8~12 times per minute. This series requires simple infrastructure. Adopting hydraulic drive, compared with mechanical transmission shears, it has the characteristics of small size, light weight, small motion inertia, low noise, stable operation, flexible operation, and large shearing section. Hydraulic and electrical integrated control, single and continuous action conversion, easy to use, stop and run at any working position, easy to realize overload protection. It has a wide range of applications. It can be used not only as processing equipment for metal recycling and processing units, but also as metal shearing processing equipment for furnace material processing in foundry workshops and mechanical construction industries.
Working principle:
This product uses hydraulic cylinders to shear materials. When working, the rotation of the motor drives the oil pump to work, extracts the hydraulic oil in the oil tank, transports it through the hydraulic oil pipe, and sends it to each hydraulic cylinder, driving the piston rod of the oil cylinder to move laterally to cut waste of various sizes.
Scope of application:
Such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe, scrap car iron sheet, hydraulic oil drum, refrigerator iron sheet, TV case, angle steel, channel steel, small briquettes and other scrap metals.
Product Features:
1. Hydraulic gantry shears adopt hydraulic transmission. Compared with mechanical transmission shears, they have small size, light weight, low inertia, low noise, stable movement, convenient operation, flexibility, large cutting surface, and easy adjustment of the scissors. Advantages, safe operation and use, easy to achieve overload protection.
2. Hydraulic gantry scissors have manual, automatic, and remote control functions. The operation and control are convenient and simple. The scissors can start and stop at any position during the working process, and can arbitrarily control the cutting position according to the size of the material to be cut. size for economical work efficiency.
3. The gantry shear is designed with a fast type. Without increasing the power of the motor and the displacement of the oil pump, the speed remains fast under shear (about 400-3000 tons), and the speed will be automatically switched when cutting larger materials. Restore the original shear force, thereby improving the work efficiency by nearly double.
4. Hydraulic gantry shear belt quick device. Without increasing the power of the motor and the displacement of the oil pump, a fast circuit is designed to increase the shearing speed from 8 times per minute to 12 times per minute (the number of times when the scissors open their mouths), which nearly doubles the work efficiency. This function is unique among the counterparts in the country.
Technical parameter
| Model | Shear Force (t) | Blade length (mm) | Shear Frequency (times/min) | Power (kw) | Working pressure (Mpa) | Bin size (mm) |
| Q91Y-315 | 315 | ≤1200 | 3-5 | 60 | 28 | 5000*1100*550(750) |
| Q91Y-400 | 400 | ≤1500 | 3-5 | 80 | 28 | 6000*1300*650(850) |
| Q91Y-500 | 50 | ≤1600 | 3-5 | 80 | 28 | 6000*1500*750(950) |
| Q91Y-630 | 630 | ≤1800 | 3-5 | 135 | 28 | 8000*1700*800(1100) |
| Q91Y-800 | 800 | ≤2000 | 3 | 180 | 28 | 8000*1900*900(1200) |
| Q91Y-1000 | 1000 | ≤3000 | 3 | 270 | 28 | 8000*2900*900(1200) |
| Q91Y-1250 | 1250 | ≤3000 | 3 | 315 | 28 | 8000*2900*900(1200) |
| Q91Y-1500 | 1500 | ≤3000 | 3 | 450 | 28 | 8000*2900*1000(1300) |
| Q91Y-2000 | 2000 | ≤3000 | 3 | 540 | 28 | 8000*2900*1100(1400) |
| Parameters are for reference only. If you need detailed data, please contact us. Contact information: +8613253576129 hnytzgjx@163.com | ||||||
FAQ
1. How many days do you need to produce this machine?
This is a machine specially designed and manufactured according to your specific requirements. From engineer design to production completion, it takes about 60 working days.
2. What does your factory do in terms of quality control?
We attach great importance to quality control and production from the purchase of steel plates to the final safety commissioning. Each machine will be fully assembled and carefully tested before shipment.
3. What is the quality assurance of your machine?
The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in ideal working conditions.
4. Can you install and debug abroad? How long will it take?
Yes, we provide overseas services, but you need to pay the engineer’s air ticket and hotel food expenses. Small equzpment usually take 5 working days, and large equipment usually take 20 working days.
Why choose Yuantong
• Henan metal crushing equipment manufacturer
• 15 years of professional production experience, the brand is trustworthy
• With independent production and processing centers, products are exported to more than 70 countries and regions at home and abroad
• The skilled technology of front-line employees provides guarantee for products
• With dozens of unique craftsmanship, it has been praised by "Customers are trustworthy"
• Advanced environmental protection spraying equipment to ensure the beautiful appearance of the equipment
• Professional after-sales team to serve you and escort your production
• Safe and efficient logistics distribution center to ensure accurate and timely delivery of equipment
• Provide you with a full range of installation and commissioning and personnel operation training
